The CX-5 Color Sorting Machine is designed for efficient, high-precision sorting, delivering reliable performance and consistent product quality. Equipped with advanced imaging technology and a 64-channel high-speed sorting system, it accurately detects and removes defective, discolored, and unwanted materials.
With a throughput of 0.3–1.0 TPH and sorting accuracy of ≥99.9%, the CX-1 helps minimize product loss while maintaining high-quality output. Its compact and efficient design makes it an ideal solution for precise sorting operations and improved processing efficiency.
IMAGE ACQUISITION SYSTEM
Made in Japan Trichromatic Toshiba CCD Sensor with 1.94 hundred Millions Pixels Per second Image.
PNEUMATIC
Japanese Make SMC Filters has been used to clean the air very Precisely.
ILLUMINATION MODULE
Made in USA OSRAM LED LIGHT with high reliability and long life.
IMAGE PROCESSING SYSTEM
Complex Intelligent Algorithm ensures higher sorting accuracy with the lowest rejection ratio.
CLOUD SYSTEM
Machine can be accessed using Mobile/Tablet in real time.
USER FRIENDLY
10″ Touch Screen can be operated very easily and is user-friendly.

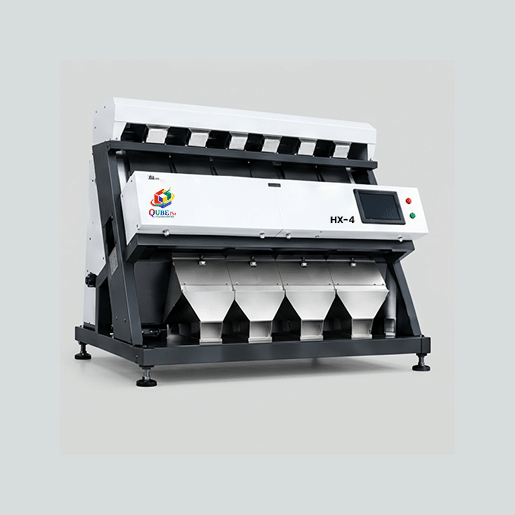

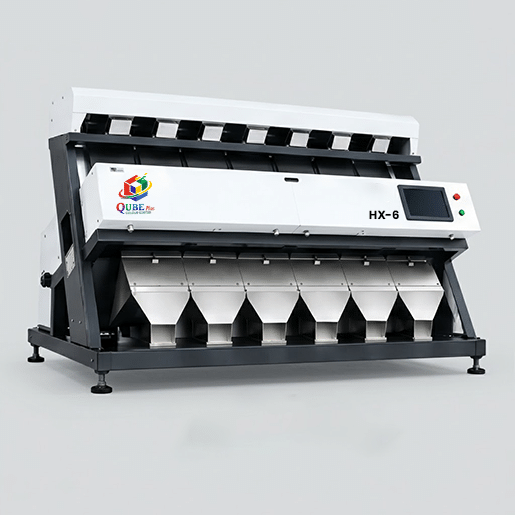

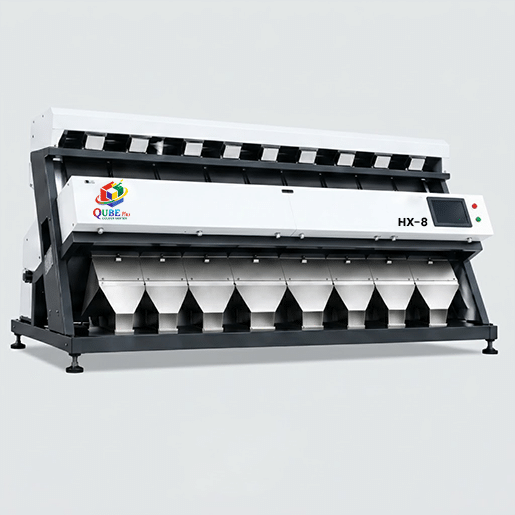

| Model | HX2 | HX3 | HX4 | HX6 | HX8 | HX10 |
| Power (KW) | 1.7 | 2.4 | 2.9 | 4.1 | 5.4 | 6.8 |
| Voltage (V/Hz) | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Air Pressure (Mpa) | 0.5–0.8 | 0.5–0.8 | 0.5–0.8 | 0.5–0.8 | 0.5–0.8 | 0.5–0.8 |
| Air Consumption (M³/min) | < 2.2 | < 3.3 | < 4.4 | < 6.5 | < 8.5 | < 10.9 |
| Dimension (L×W×H mm) | 1488 × 1466 × 1840 | 1833 × 1466 × 1840 | 2178 × 1466 × 1840 | 2982 × 1466 × 1840 | 3672 × 1466 × 1840 | 4357 × 1466 × 1840 |
