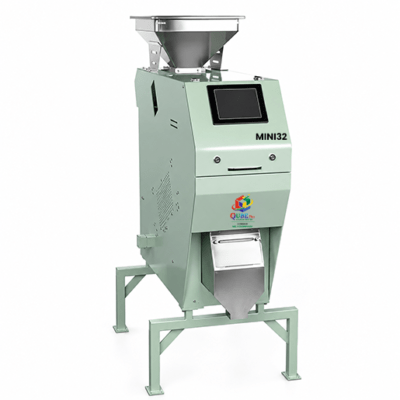

The Mini32 Color Sorting Machine delivers high-precision, high-throughput performance with advanced RGB CCD sensors and a 32-channel high-speed pneumatic ejection system. It efficiently detects and removes defective, discoloured, or contaminated materials, ensuring accurate sorting, minimal product loss, and consistently high-quality output.
Designed for superior performance and long-term reliability, the system incorporates an advanced rejection carryover reduction mechanism that significantly enhances sorting precision while maximizing product yield. By minimizing the unintended rejection of good products, it ensures consistently high-quality output, reduces product loss, and improves overall operational efficiency.
IMAGE ACQUISITION SYSTEM
Made in Japan Trichromatic Toshiba CCD Sensor with 1.94 hundred Millions Pixels Per second Image.
PNEUMATIC
Japanese Make SMC Filters has been used to clean the air very Precisely.
ILLUMINATION MODULE
Made in USA OSRAM LED LIGHT with high reliability and long life.
IMAGE PROCESSING SYSTEM
Complex Intelligent Algorithm ensures higher sorting accuracy with the lowest rejection ratio.
CLOUD SYSTEM
Machine can be accessed using Mobile/Tablet in real time.
USER FRIENDLY
10″ Touch Screen can be operated very easily and is user-friendly.
| Model | MINI32 | ZX1 | ZX2 | ZX3 | ZF500 | ZF700 | ZF1000 |
| Optimized Carryover (BAD : GOOD) |
15:1 | 20:1 | 20:1 | 20:1 | 30:1 | 30:1 | 100:1 |
| Product Output (T/H) | 0.1–0.4 | 0.2–0.8 | 1.0–2.0 | 1.0-3.0 | 2.0-5.0 | 3.0-8.0 | 4.0-10.0 |
| Heating of Tray | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Camera | CCD | CCD | CCD | CCD | CCD | CCD | CCD |
| Types of Selection | Per size/color | Per size/color | Per size/color | Per size/color | Per size/color | Per size/color | Per size/color |
| Remote Access & Control (Connectivity) | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Channel Split | N/A | Yes | Yes | Yes | N/A | N/A | N/A |
| Net Weight (KG) | 150 | 280 | 420 | 600 | 1250 | 1665 | 2324 |
| Europe Certification | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Type of Illumination | Led Lamp | Led Lamp | Led Lamp | Led Lamp | Led Lamp | Led Lamp | Led Lamp |
| Power Consumption (KW) | 0.4 | 0.8 | 1.2 | 1.8 | 2.6 | 3.5 | 7.8 |
| Dimension L×W×H (CM) | 52 x 123 x 155 | 86 × 159 × 152 | 117 × 159 × 152 | 149 × 159 × 152 | 240 × 166 × 185 | 303 × 165 × 185 | 437 × 162 × 186 |
| Power Supply (V/HZ) | 220V±10%50/60HZ | 220V±10%50/60HZ | 220V±10%50/60HZ | 220V±10%50/60HZ | 220V±10%50/60HZ | 220V±10%50/60HZ | 220V±10%50/60HZ |
